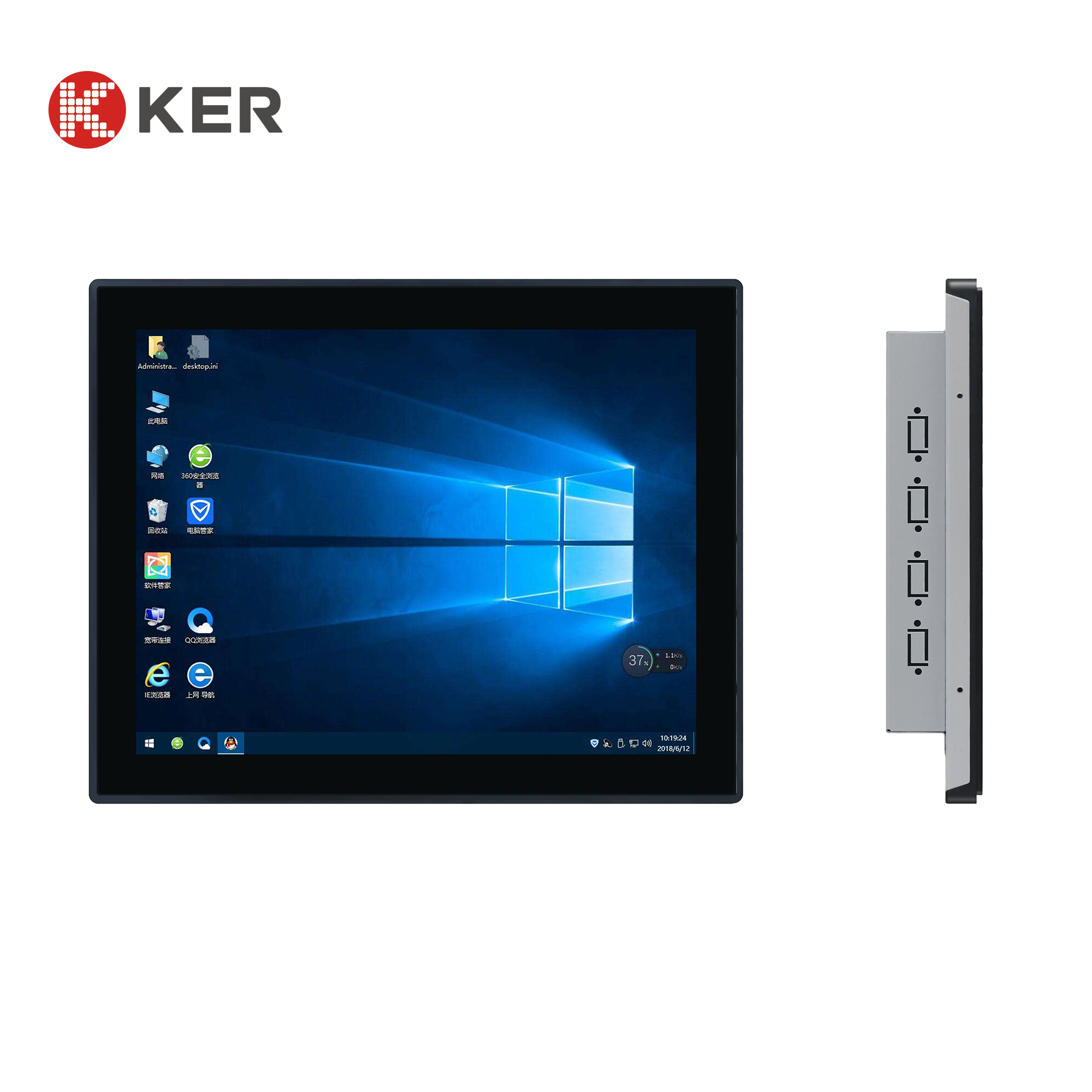

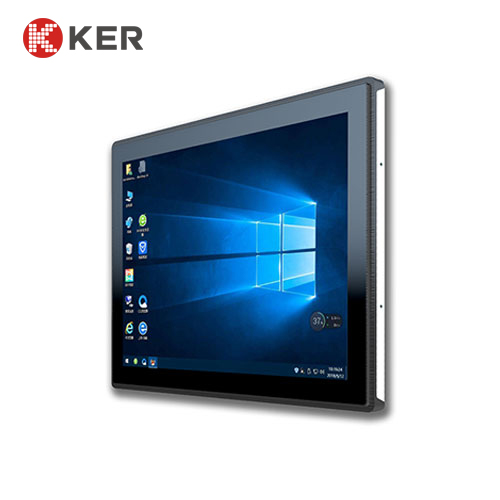

Product Introduction
The capacitive touch all-in-one/display is a convenient and new type of human-computer interaction equipment. It combines the advantages of touch, computer, multimedia, audio, network, industrial design, structural innovation, etc. It has a purely flat product structure with excellent performance The touch effect can quickly complete the query and display of information, and truly achieve simple-to-use human-computer interaction.
Features
Capacitive touch: 10-point projected capacitive touch technology, 3 milliseconds fast response, accurate and stable;
High-definition display: brand new A-standard LCD screen, high-definition resolution 1024*600, brightness up to 200, clear and natural colors;
Compatible system: Single touch display, Android touch all-in-one machine, and computer touch all-in-one machine are available;
Stable performance: Each machine has undergone multiple inspections such as machine aging, temperature and humidity testing, electrostatic testing, vibration, high voltage, touch click, display, etc. to ensure stable quality and support 7*24 hours of work;
Structural technology: private mold design, brand new frame paste technology, good airtightness, flat and thin structure, the thinnest part is only 17mm;
Durable material: frame + sheet metal back shell, solid and durable, corrosion and oxidation resistance;
Support customization: Provide a variety of customized services, and flexibly increase multiple serial ports and U ports;
(Such as appearance color, logo, camera, 4G module, card reader, fingerprint recognition)
Specification
LCD Screen Characteristics |
Size |
15 inches |
|
Resolution |
1024*768/60Hz |
|
Display Scale |
4:3 |
|
Visual Angle |
45/45/15/35 (Typ.)(CR≥10) |
|
Contrast Ratio |
3000:1 |
|
Color Depth |
262K |
|
Response Time |
3.8/1.2(Typ.)(Tr/Td) ms |
|
Brightness |
280 |
|
Signal |
LVDS |
|
Voltage |
3.3V |
Touch Tech |
Capacitive touch screen (G+G), optional ILITEK/EETI solution, optional AG cover, optional waterproof solution |
|
|
Points |
10 pt(requires system support) |
|
Touch Method |
Finger touch (active pen optional) |
|
Surface Hardness |
≥6H |
|
Response Time |
<3ms |
|
Transmittance |
≥85% |
|
Service life |
>50 million times |
|
Max Supported Resolution |
4096*4096 |
|
Linear Error |
≤2.5mm |
|
Haze |
3% (Max) |
|
Operating Temperature&Humidity |
-10~60℃, 20~85% RH,No condensation |
|
Storage Temperature & Humidity |
-20~70℃, 20~85% RH,No condensation |

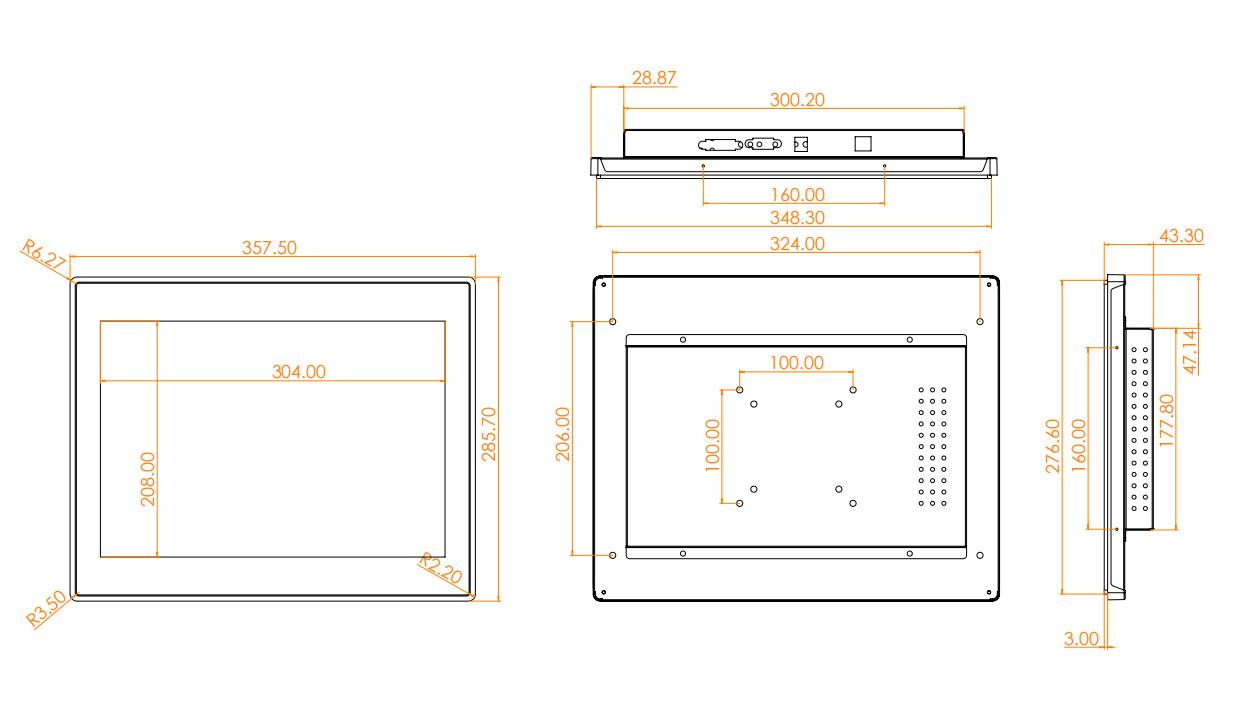

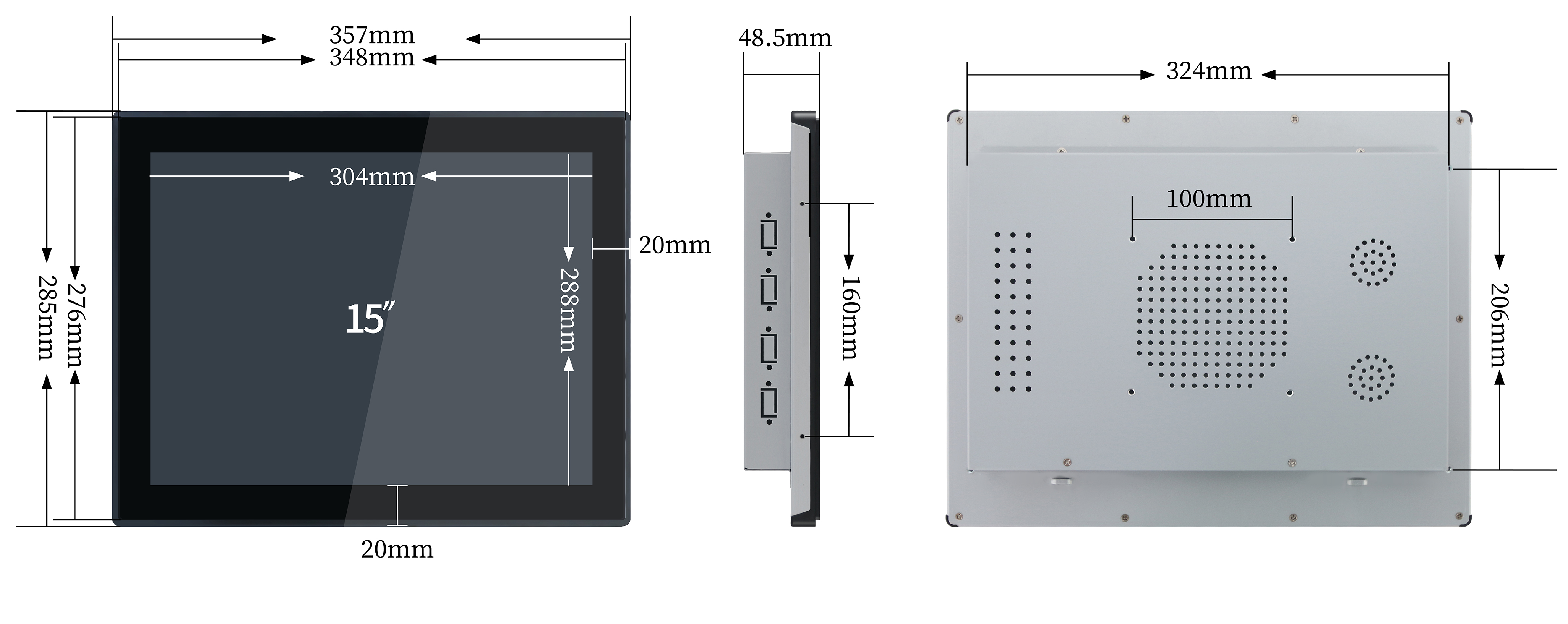

Device |
Visual Area |
304.128(W)×228.096(H) mm |
|
Dimension |
357.3mm*285.7mm |
|
Monitor Height |
42.5mm |
|
All-in-one Height |
48.5mm |
|
Hole Size |
348.4mm*276.7mm R3.5 |
|
Display Interface |
VGA/DVI/HDMI optional |
|
Wall-mount Hole |
100mm*100mm |
