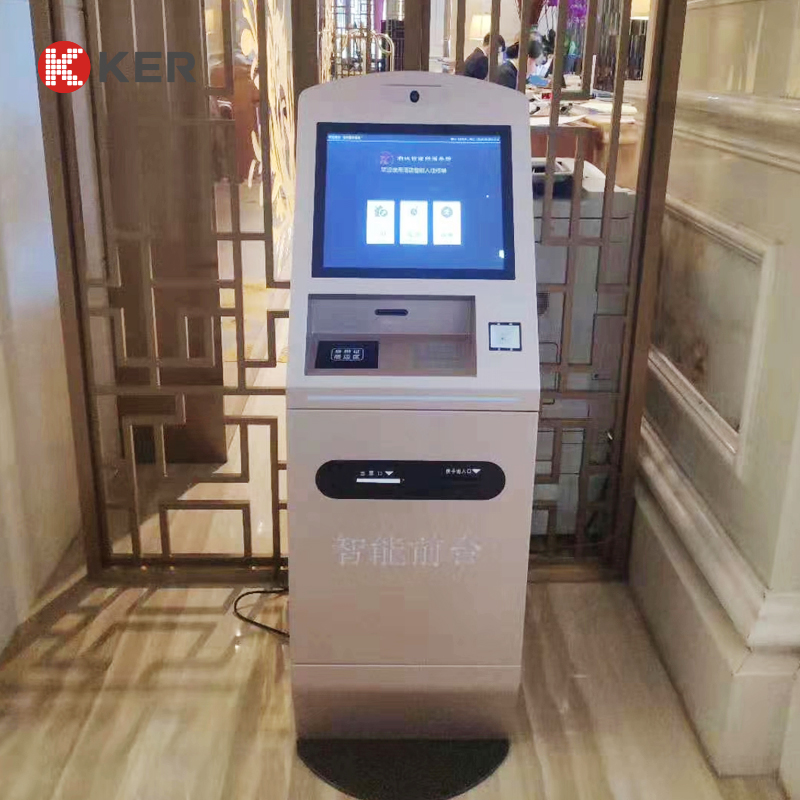

19” Hotel Self Check In Kiosk For Saudi Arabia
INTRODUCTION
Hotel Self-Check-in Machine is a truly unattended self-service hotel intelligent platform. It improves the guest experience, saves labor costs and makes the connection much closer between customers and hotels, thus improving the overall efficiency of the hotel. The hotel’s smart check-in system has been successfully applied to hundreds of Chinese-style hotels and has been recognized by users.
FEATURES
- Sending and receiving room card: Distribution and recycling of hotel room cards
- Identity authentication: Authentication by ID card reading and face recognition
- Multiple payment: Code scanning payment, UnionPay payment, membership card payment
- Receipt Print: Transaction ReceiptPrint
- Advertising Play: Unified play management by network background
SPECIFICATION
|
No. |
Category |
Module |
Spec. |
Model: KER-DZ004A |
|
LCD screen |
19″ LED LCD monitor:Display ratio: 4:3The best resolution: 1280×1024
Viewing angle: (170°/170°) High brightness: 300cd/m² High contrast ratio: 5000: 1/60Hz Service life: 50000 hours |
|||
|
Touch screen |
Touch screen: Capacitive touch screenPhysical resolution: 4096*4096 Touch response time <3mSPrecise touch control; accuracy up to 99%, smooth writing, no disconnection and no drift
Fully physically toughened Mohs level 7 explosion-proof glass, scratch-proof, anti-collision, anti-radiation Transmittance >85%, interface mode USB2.0 Applicable operating system Windows7VistaXP2003200098CELinux Working temperature: -25℃ to +45℃ |
|||
|
2 |
Host |
Industrial control host |
Motherboard chip: I3Hard drive: 120G solid state driveRAM: 4GB
Graphics card: Intel set display interface: dual-core clocked at 1.9G 15W, 8 USB 2/6 serial ports Sound card: integrated ALC6226 Network card: onboard Gigabit network card (supports wake-on-LAN) Speaker: 2*10W |
|
|
3 |
Face recognition |
camera |
Binocular camera Using 1/3″ 1.3 million high-definition image sensor, low-power products Resolution 1280*960 S/N ratio≥39dB Dynamic range ≥89dB Lens: Angle of view 72 degrees Stable working temperature 25℃-75℃, fixed 30 frames, no smear Communication interface: USB |
|
|
4 |
Printing |
Receipt Printing |
Printing method: Line thermal printing Paper feeding method: Curve or Straight or Drop in Receiving buffer: 4KB Printing speed (MAX) 150 mm / sec. Paper size 82 ± 0.5 mm x dia. 254 mm max. Print head life Mechanism: 15,000,000 lines Thermal head: 100 km (62.14 miles) Communication interface: USB, parallel port, 232 |
|
|
|
||||
|
5 |
Card Dispensing |
Card Dispenser |
Standard 0.76mm, thick non-embossed card loading capacity: 150 sheets Issuing life: 1 million times Optional: (After adding accessories to heighten the card stack, the loading capacity is: 350 sheets) The model does not have a cycle function, and can be connected to the read-write module of the door lock manufacturer Without card reader module Communication method: RS232 interface Compatible system: windows (XP.7.8.10), Linux, Android |
|
|
6 |
Payment |
Band Card Reader/ POS Machine |
Need to be provided by customers Buy in local and offer us the integration documents for intergrating software. |
|
| 7 |
password keyboard |
Metal digital encryption keyboard Input keyboard: 10 numeric keys, 6 function keys Security features: waterproof, dust-proof, riot-proof, anti-leakage, anti-monitoring protection capabilities; Support: RSA, DES, Triple DES, AES hardware encryption Numeric keys and function keys can be provided with raised braille, and characters can also be customized according to requirements; Possess the “UnionPay Card Acceptance Terminal Product Safety Certification Certificate”; Communication interface: standard RS-232 Compatible system: windows (XP.7.8.10), Linux, Android |
||
|
8 |
Scanner |
QR code |
Light source type white light LED (illumination) Scanning direction: Rotate 360°, tilt angle 65°, elevation angle 60° Scanning speed: 30fps Identification method: CMOS Reading mode: Inductive reading Resolution: 640 × 480 pix Scanning accuracy: ≥5mil Secondary development support Communication interface: USB Compatible system: windows (XP.7.8.10), Linux, Android |
|
| 9 | Sound | SRX712 |
dual combination of amplifier and sound, 2x5W speakers |
|
| 10 | Light control | Indicator |
Indicator light control panel (communicate with computer and provide interface), there are indicator lights at the card issuance port, bank card, small ticket port, etc. |
|
| 11 | Chassis | Steel chassis |
Made of cold-rolled steel, the surface is painted by car, the color can be customized, anti-magnetic, anti-rust and anti-static, accord with ergonomics. |
|
ADVANTAGES
1. The hotel self-service equipment can easily complete a series of operations such as check-in, check-out, payment and renewal, helping the hotel to save costs and enhance customer experience.
2. 24 hours self-service, easy to operate, easy to query.
3. The cloud management platform has a large amount of stored data, which can protect the privacy of customers, self-organize and analyze the data reports, make the management scale, and timely understand the hotel operation status.
4. Can be paid by scanning code on Alipay or WeChat. There’s no need to give change which improves the efficiency of the front desk and reduce labor costs.
ADCANCED TECHONOLOGY
1. Integrates ID card reader, IC card reader, transceiver card machine, camera and other peripheral functions. Integrates intelligent face recognition function, recognition rate up to 99%
2. Support Alipay, WeChat payment, UnionPay payment and other mainstream online payment methods.
3. Integrated mobile phone reservation system.
4. Docking hotel management system, support system smooth upgrade.
