27” Capacitive Touch Monitor
INTRODUCTION
The Touch Screen allows users to operate the host as long as they lightly touch the icons or text on the computer display with their fingers, which eliminates keyboard and mouse operations and makes human-computer interaction more straightforward. Mainly used in public hall information query, leadership office, electronic games, song ordering, multimedia teaching, air ticket/train ticket pre-sale, etc. The products are mainly divided into three categories: capacitive touch screen, resistive touch screen and surface acoustic wave touch screen.
• Standard sizes List for PCAP touch overlay:
10.1”,10.4″,12.1″,13.3”,15″,15.6″,17″,17.3″,18.5”,19″,21.5″,22″,23″,23.6″,24″,27″,32″,42”,43”,49”,50”,55”,65”
FEATURES
—-Capacitive touch screen( and Resistive touch screen,IR touch screen or Non-touch screen option)
—–Way to install:Embedded/desktop/wall mounted/VESA
—–Color:Black/white
——Material:Aluminum alloy structure
——Panel:HD industrial TFT LCD.
——Environment:indoor/outdoor.(IP65 waterproof&dustproof in front of panel)
——-5ms response time,60000 hours life span
ADVANTAGES
1.Using new A+grade industrial TFT LCD screen
2.10-point tempered cover lens option.
3.The screen is full flat with IP66 dust and waterproof resistance.
4.The material is Aluminum alloy enclosure with efficient heat dissipation.
5.Using Industrial grade motherboard with reliable performance.
SPECIFICATION
|
LCD Screen Characteristics |
Size |
27 inches |
|
Resolution |
1920*1080/60Hz |
|
|
Display Scale |
16:9 |
|
|
Visual Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
|
Contrast Ratio |
3000:1 |
|
|
Color Depth |
16.7M |
|
|
Response Time |
7/5(Typ.) (Tr/Td)ms |
|
|
Brightness |
300 |
|
|
Signal |
LVDS |
|
|
Voltage |
5V |
|
|
Touch Tech |
Capacitive touch screen (G+G), optional ILITEK/EETI solution, optional AG cover, optional waterproof solution |
|
|
Points |
10 pt（requires system support） |
|
|
Touch Method |
Finger touch (active pen optional) |
|
|
Surface Hardness |
≥6H |
|
|
Response Time |
<3ms |
|
|
Transmittance |
≥85% |
|
|
Service life |
＞50 million times |
|
|
Max Supported Resolution |
4096*4096 |
|
|
Linear Error |
≤2.5mm |
|
|
Haze |
3% (Max) |
|
|
Operating Temperature&Humidity |
-10～60℃, 20～85% RH，No condensation |
|
|
Storage Temperature & Humidity |
-20～70℃, 20～85% RH，No condensation |
|
|

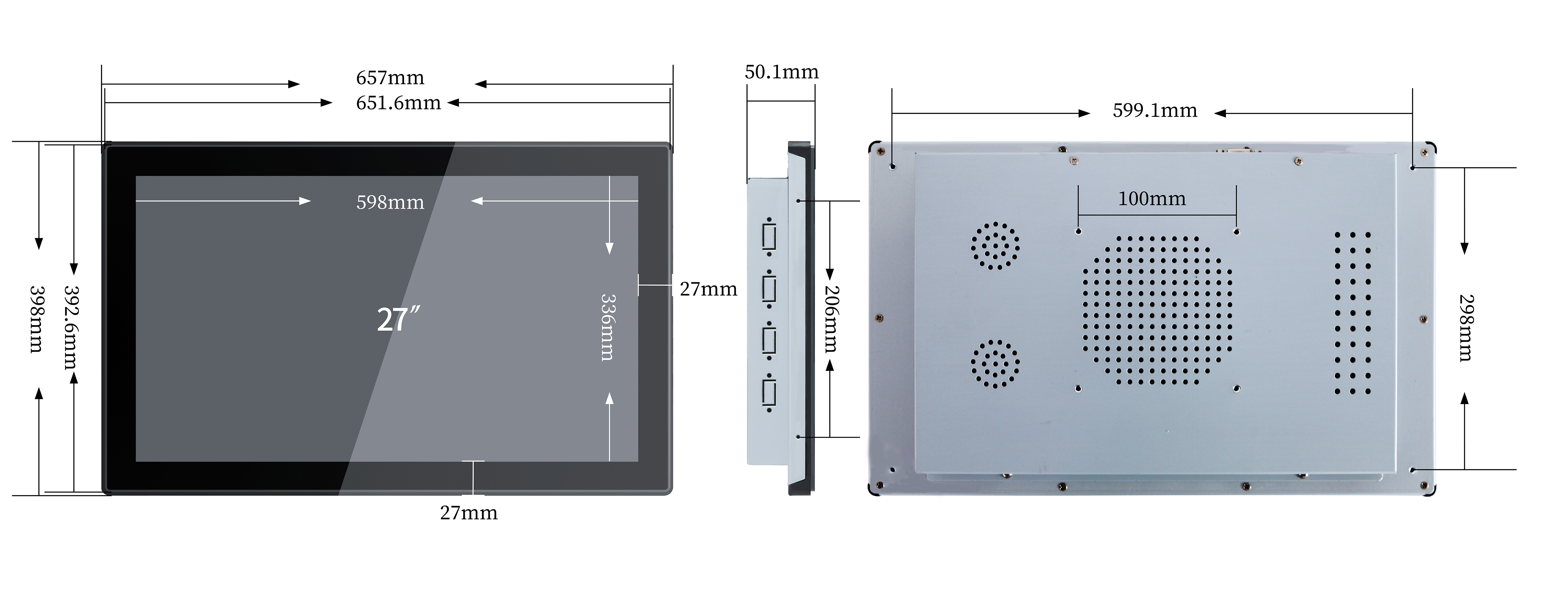

Device |
Visual Area |
597.6(W)×336.15(H) mm |
|
Dimension |
657mm*398mm |
|
|
Monitor Height |
45.9mm |
|
|
All-in-one Height |
45.9mm |
|
|
Hole Size |
651.6mm*392.6mm R7.0 |
|
|
Display Interface |
VGA/DVI/HDMI optional |
|
|
Wall-mount Hole |
100mm*100mm |
