Europe style for China Android OS Window OS Self Service Food Ordering Payment Kiosk Machine Hotel Self Check Vending Kiosk 21 Inch
Our team through professional training. Skilled professional knowledge, strong sense of service, to meet the service needs of customers for Europe style for China Android OS Window OS Self Service Food Ordering Payment Kiosk Machine Hotel Self Check Vending Kiosk 21 Inch, Never-ending improvement and striving for 0% deficiency are our two main quality policies. Should you need anything, don’t hesitate to contact us.
Our team through professional training. Skilled professional knowledge, strong sense of service, to meet the service needs of customers for China Restaurant Food Ordering Kiosk and Self Service Vending Kiosk price, All the imported machines effectively control and guarantee the machining precision for the items. Besides, we have a group of high-quality management personnels and professionals, who make the high-quality items and have the ability to develop new merchandise to expand our market home and abroad. We sincerely expect customers come for a blooming business for both of us.
INTRODUCTION

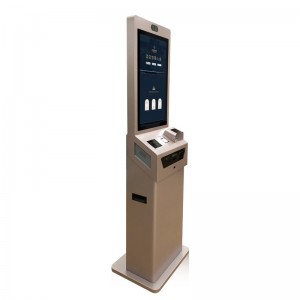

Hotel Self Check In Kiosk is an automatic machine that allows the customers to perform a self-service check in/check out process. Customers can receive and return room cards directly at the kiosk which saves waiting time. It’s a self-service, safe and fast intelligent management system that improves hotel service efficiency and customers staying experience.
FEATURES
-Sending and receiving room card: Distribution and recycling of hotel room cards
-Identity authentication: Authentication by ID card reading and face recognition
-Multiple payment: Code scanning payment, UnionPay payment, membership card payment
-Receipt Print: Transaction ReceiptPrint
-Advertising Play: Unified play management by network background
SPECIFICATION
| NO. | Category | Module | Specification |
| 1 |
Touch Display |
LED Display |
19＂ Full HD LED LCD screen Display Ratio: 4:3; Maximum Contrast: 3000: 1 Resolution: 1280 * 1024; Viewing angle: 170 ° Response Time: 5MS; Brightness: 300cd / m² Signal Input: VGA or HDMI The average life time is 100,000 hours. |
|
Capacitive Touch Screen |
19＂ capacitive touch screen, matching the size of the main display screen, no need for touch force. Response Speed: 2-5ms; Light Transmittance: 95%; Response Time: 5ms; Surface Hardness: > Mo type 7; Resolution: 4096 * 4096; Position Accuracy: ≤2mm; The service life is more than 10 years. No coating on the surface, anti-violence, anti-scratch, water-proof, dust-proof. Only one calibration is needed. |
||
| 2 | Host | Industrial Host | I3 industrial control motherboard; Kingston 4G memory; Kingston 64G solid hard drive
(Integrated audio, network card, channel 2.0, support lvds / vga, 6 serial ports, 8 USB2.0, one network port) |
| 3 | Face Recognition | HD Camera | Industrial HD camera with face recognition and live detection. |
| 4 | Printing | Receipt Printer |
Epson Thermal Receipt Printer T532 Printable width: 50mm-80mm, with automatic cutter; Can place lengthened 80mm thermal paper, support paper-lacking alarm interface. |
| 5 | Identification | OCR Passport Scanner |
Wintone passport scanner Support passport scanning, identity authentication. |
| 6 | Card Dispense and Return | Automatic dispense and receive room cards. |
Model: ACT (with recycling carton) Support automatic card dispensing. Read magnetic stripe information during card dispensing; Card size 55x86mm, card thickness 0.36 ～ 1.0mm, card case capacity 120pcs / 0.76mm standard card (maximum card capacity is 500PCS; Card dispensing speed is more than 1 / s , Double-wheel card-rubbing design effectively prevents dual-card output, recessed design, easy adjustment of card thickness, movable card box with lock, more effective improvement of security, high-strength plastic card issuing channel structure, RFID anti-interference, and flexible card reading and writing function expansion, dustproof and anti-foreign body bayonet design. |
| 7 | Finance |
|
Should be provided by customers and also customers should get the interface documents. |
| 8 | Bill Acceptor | NV Bill Acceptor | Accept all denominations but can only dispense one. |
| 8 | Sound/Lights Control | SRX712 | Audio amplifier,2x5W speaker |
| Lights | Indicator light control board (communicating with computer and providing interface), there are indicator lights at room card dispensing, bank card, receipt slots, etc. | ||
| 9 |
Cooling |
FP20060 |
Quiet fan; 2 configurations, bearing structure B: BALL, black-painted aluminum alloy die-casting anti-corrosion, moisture-proof structure, flame retardant, high-precision, long life low-noise ball-bearings. |
| 10 |
Casing |
Toughthed Casing |

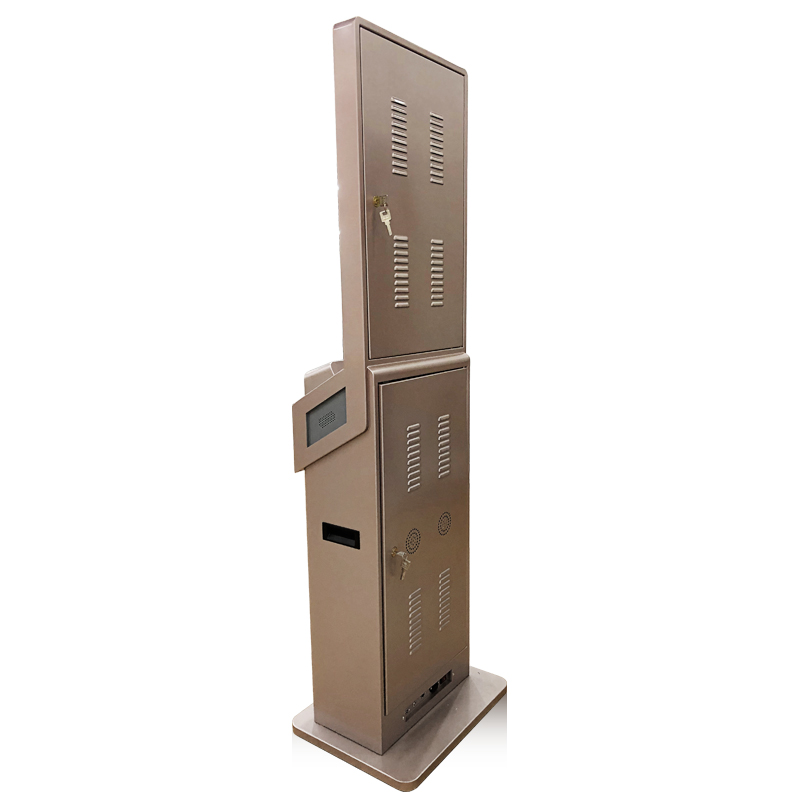

Appearance: novel and attractive, seams are close and aligned with the same gap; Material: cold-rolled steel plate, hard and thick, not easy to deform; Surface treatment: rust-proof, anti-corrosion, wear-proof, not easy to stain and damage; Internal structure: tidy wiring; External structure: each component module is tightly combined with the cabinet, the layout is reasonable, the technology is sophisticated, and the internal skeleton is required to ensure the stability of the casing; the overall design is ergonomically designed, and the operation is simple and comfortable. The thickness of the steel plate is 1.5mm and the bottom of the casing is 2.0mm. The surface of the shell is treated with metal spraying. The color and style can be customized according to requirements. |
| 14 |
Software |
Meet the online (mobile phone), offline (self-service machine) and manual room booking, renewal, check-out routine function operation, and related reconciliation functions, classification and summary report generation, customer information collection, etc. | |
ADVANTAGES
1. Fast and easy check-i/check-out.
2. Reduce man power.
3. Operates 24/7.
4. Improves customer satisfaction.
5. All records will be kept which facilitates hotel management.
