Floor Stand network wifi lcd advertising display waterproof outdoor kiosk screen standalone digital signage
DESCRIPTION
Outdoor digital signage is typically bright and rugged to withstand the elements. From scrolling marquee signs to full motion graphics, outdoor digital displays can make a big impact to an audience on foot, in cars or sitting still.

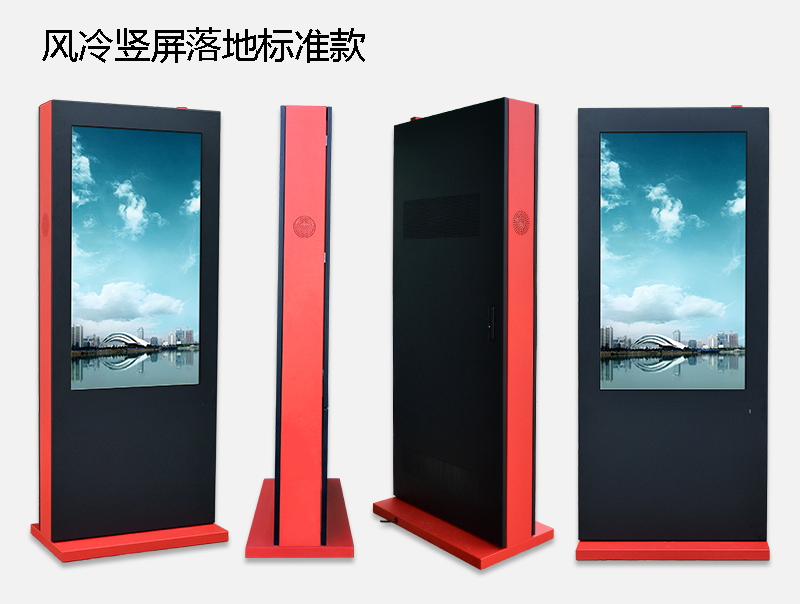

PRODUCT APPEARANCE AND SIZE
COLORS
DETAILS
PRODUCT FEATURES
Structure: waterproof, dustproof, sunscreen, anticorrosion, explosion-proof, anti-ultraviolet, anti-theft, anti-biological, Anti-mold, exquisite appearance, can be customized.
Display: high-definition, high-brightness, intelligent photosensitive, full angle of view.
Electronics: lightning protection, leakage protection, intelligent timing, intelligent temperature control system
Additional configuration: support remote monitoring, touch interaction, smart bank card/QR code/ID card recognition, Smart printing.
PRODUCT SPECIFICATION
|
NO. |
MODULE |
SPEC. |
PARAMETER |
REMARK |
|
1 |
Structure |
Shell | 1.0~2.0mm galvanized sheet, sprayed with outdoor special powder on the surface, the protection ability is more than 7 years.The door is designed with waterproof structure and sealed with outdoor rubber strip to meet the IP55 protection level. |
|
| Glass | 6mm high-transparent tempered glass |
Optional |
||
|
2 |
Screen |
Display size | 32”~85” |
|
| Display ratio | 16：9 |
|
||
| Resolution | 1920X1080 |
|
||
| Brightness | 1500~2500nit |
|
||
| Viewing angle | 178° horizontal / 178° vertical |
|
||
| Brightness adjustment | automatic |
|
||
| Backlight | LED backlight |
|
||
|
|
LED display | None |
|
|
|
Lightbox |
Lightbox | None |
|
|
|
Touch |
10 points touch | None |
Optional |
|
|
3 |
Motherboard |
Default mainboard | A20 dual-core Android |
Optional |
| WIFI | None |
Optional |
||
| Player software | Supports networked program release, local program update, stand-alone mode playback |
|
||
|
4 |
Electronic control |
Switching power supply | Industrial power supply |
|
| Waterproof speaker | Waterproof high quality 10W speaker |
|
||
| Lightning protector | Lightning protection Level 3 |
|
||
| Leakage protector | Anti-leakage |
|
||
| Timers | Can be customized according to the day, week and month |
|
||
|
5
|
Heat dissipation |
Intelligent straight-air heat dissipation heating system | Intelligent heat dissipation system, unique design of air duct and main board, automatic adjustment of wind speed and air volume |
|
| Intelligent temperature sensing system, automatically turn off the display at high temperature |
|
|||
| Low temperature self-starting heating module optional |
Optional |
|||
|
6 |
Camera |
Camera | None |
Optional |
|
7 |
Working parameters |
Working temperature | -20℃~+45℃ |
|
| Working humidity | 5%~95% |
|
||
| Working voltage | AC 220V/50Hz |
|
||
| Max power consumption | see parameter table |
