Through-the-Wall ATM Cash Dispenser for Secure Cash Withdrawal

KER Through-the-Wall ATM Cash Dispenser is a self-service banking terminal designed primarily for secure cash withdrawal services.

The machine is installed through a wall, with the customer-facing interface exposed on the front side while the cash safe, dispensing modules, computer and maintenance area remain protected inside the bank, service room or secure building area.

This installation method improves equipment security, simplifies cash replenishment and maintenance, and allows the ATM to provide convenient withdrawal services in bank branches, shopping centers, transportation hubs, commercial buildings and other public locations.

The machine can be customized with different cash dispensing modules, card readers, encrypted PIN pads, printers, cameras and communication systems according to the target banking platform and deployment environment.

Through-the-Wall Installation

The ATM is designed to be installed into a building wall or secure partition.

The customer uses the front panel to complete the transaction, while authorized staff access the cash safe and internal modules from the protected rear side.

Key benefits include:

• Separate customer and maintenance areas
• Improved cash and equipment security
• Convenient cash replenishment from a secure room
• Reduced exposure of internal components
• Suitable for bank lobbies and exterior wall installation
• Custom fascia and wall-frame dimensions
• Flexible rear-service configuration

The final wall opening and installation structure can be customized according to the project site.

Self-Service Cash Withdrawal

The ATM can support a standard cash withdrawal process after integration with the customer’s ATM host, switch or banking platform.

A typical transaction may include:

1. Insert or tap a bank card
2. Select a language
3. Enter the PIN through the encrypted keypad
4. Select the withdrawal amount
5. Send the authorization request to the host system
6. Receive transaction approval
7. Dispense the requested banknotes
8. Return the card
9. Print a receipt if required

The exact transaction workflow depends on the ATM software, host system, payment network and local regulatory requirements.

Banknote Dispensing System

The terminal can be equipped with a multi-cassette cash dispensing module for one or several banknote denominations.

Available configurations may include:

• Two, four or more cash cassettes
• Single or multiple denominations
• Configurable denomination combinations
• Reject or retract cassette
• Banknote-presenting mechanism
• Cash-low and cassette-empty alerts
• Jam and fault detection
• Cassette status monitoring
• Secure cash cassette locking
• Front-load or rear-load configuration, subject to design

Cash capacity depends on the selected dispenser, banknote dimensions and cassette configuration.

Card Reading and Contactless Options

The ATM can integrate different card-reading technologies according to the project requirements.

Optional functions include:

• Magnetic-stripe card reading
• EMV chip card reading
• Contactless NFC card reading
• Card retention
• Anti-skimming protection
• Card-present detection
• Motorized or dip card reader
• Status and error reporting

The selected card reader and software must match the required payment network and certification environment.

Encrypted PIN Entry

An optional encrypting PIN pad can be installed for secure customer authentication.

Depending on the selected model, it may support:

• PIN entry
• Encrypted PIN block generation
• Secure key management
• Tamper detection
• Function keys
• Accessibility keys
• PCI-approved hardware options
• Remote key loading, subject to provider support

Final security certification and key-management responsibilities must be confirmed with the ATM operator, processor or acquiring partner.

Receipt Printing

An integrated thermal printer can provide:

• Withdrawal receipts
• Balance information
• Error or cancellation records
• Transaction references
• Operator-defined messages
• Promotional information

Printer width, paper roll capacity and cutter type can be selected according to the project.

Host and ATM Switch Integration

The ATM hardware must connect with the customer’s banking system, ATM switch or transaction processor.

Possible integration methods may include:

• ATM host platform
• Transaction switch
• XFS or vendor SDK
• ISO 8583 messaging through compatible middleware
• Remote terminal management
• Electronic journal system
• Key-management platform
• Monitoring and reconciliation system

KER can provide hardware integration, device SDK support and enclosure customization. The banking software, payment-network connection, encryption-key management and transaction certification must be defined with the customer or authorized software provider.

Security and Cash Protection

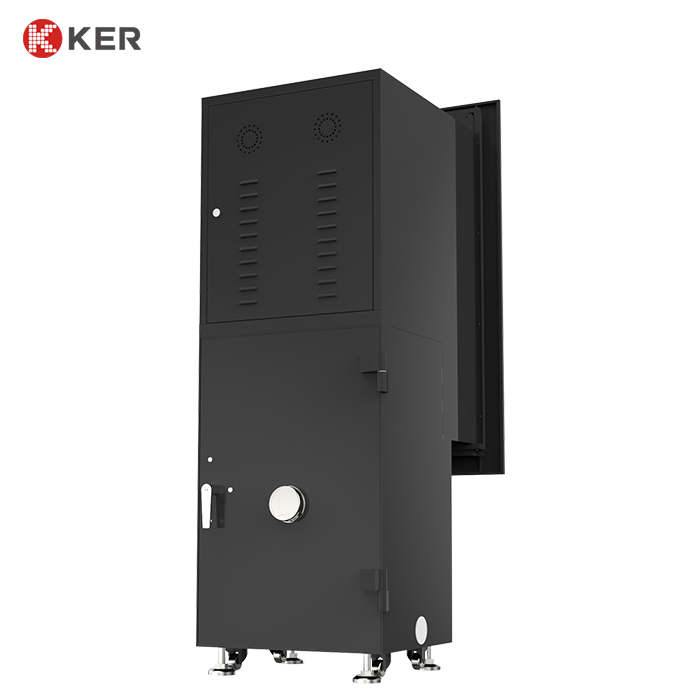

The rear section can be designed with a secure safe and protected maintenance compartment.

Optional security features include:

• CEN-rated safe options
• Reinforced steel cabinet
• Electronic or mechanical safe lock
• Dual-lock control
• Anti-pry structure
• Door-open sensor
• Vibration or impact sensor
• Internal alarm interface
• Surveillance camera
• Privacy shield
• Anti-skimming device
• Floor anchoring
• Secure cable routing

Security level should be selected based on the installation country, operator standards and deployment environment.

Camera and Customer Monitoring

Optional cameras can be integrated for:

• Transaction-area monitoring
• Customer image capture
• Facial comparison through third-party software
• Incident review
• Security recording
• Remote support

Camera use and data retention must comply with local privacy and banking regulations.

Remote Monitoring and Management

An optional ATM management platform can monitor terminal status and assist operators with maintenance.

Possible functions include:

• Device online status
• Cash cassette inventory
• Cash-low warning
• Printer paper status
• Card reader status
• Dispenser fault alerts
• Electronic journal records
• Error and event logs
• Remote restart
• Software version management
• Transaction statistics
• Maintenance notifications

The exact monitoring functions depend on the ATM software and connected hardware modules.

Customer Interface and Accessibility

The ATM interface can be customized for different languages, transaction flows and accessibility requirements.

Available options may include:

• Multilingual operation
• High-contrast interface
• Large on-screen buttons
• Tactile keypad markings
• Audio guidance
• Headphone socket
• Braille labels
• Adjustable installation height
• Privacy protection
• Customer assistance prompts

Accessibility requirements should be confirmed according to the installation market.
