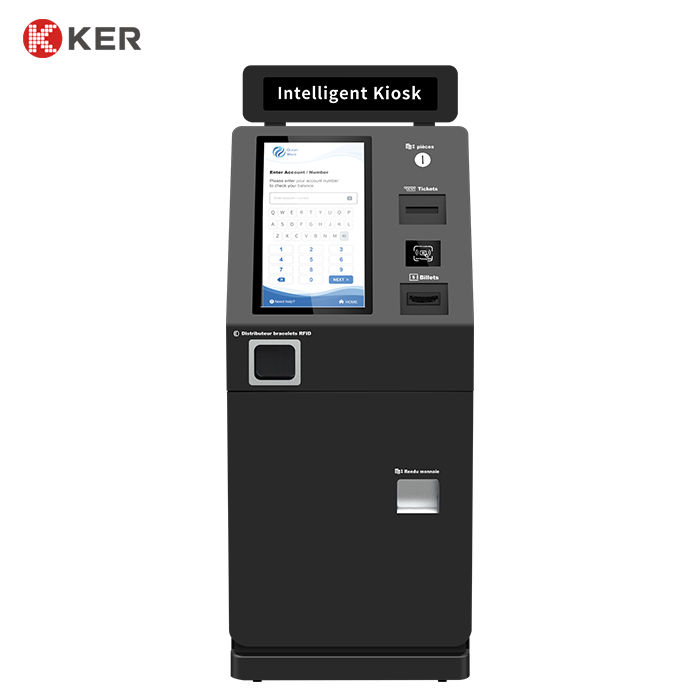

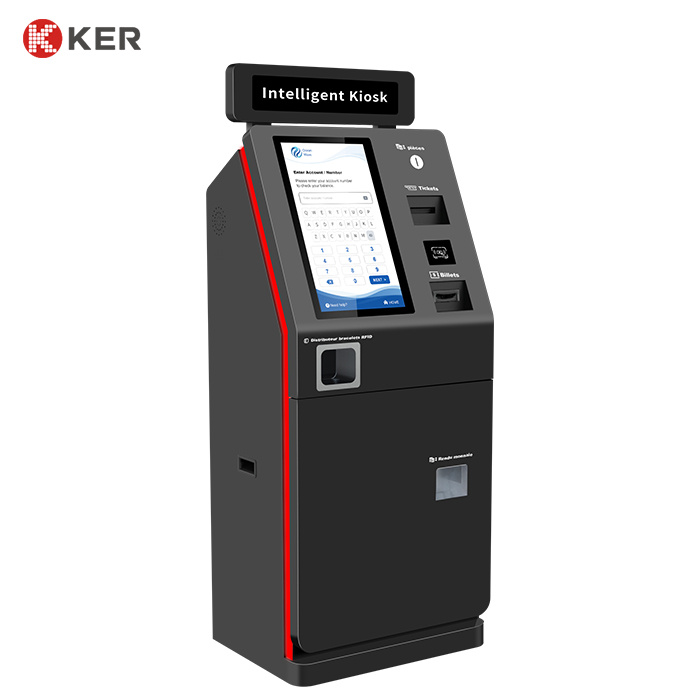

Wristband Purchase and Recharge Kiosk for Amusement Parks

KER Wristband Purchase and Recharge Kiosk is a multifunction self-service payment terminal developed for amusement parks, water parks, arcades, trampoline parks, indoor playgrounds and family entertainment centers.

The kiosk allows visitors to purchase a new RFID or NFC wristband, recharge an existing wristband, check the available balance and complete payment independently.

By integrating a touchscreen, wristband dispenser, RFID reader, cash payment modules, automatic change system, receipt printer and optional card payment terminal, the kiosk helps venues reduce cashier workload, shorten queues and provide convenient unattended service.

The hardware configuration, payment methods and software workflow can be customized according to the venue’s ticketing, membership and cashless payment platform.

New Wristband Purchase

Customers can purchase a new wristband directly from the kiosk.

A typical purchase process may include:

1. Select a language
2. Choose a wristband package
3. Select admission, credit or play-value options
4. Confirm the total amount
5. Complete payment
6. The system registers and activates the wristband
7. The wristband is dispensed automatically
8. A receipt or QR voucher is printed if required

The kiosk can support fixed packages, time-based packages, admission packages or stored-value packages according to the venue’s operating model.

Existing Wristband Recharge

Visitors can place or tap an existing RFID or NFC wristband on the reader to add more balance.

The recharge process may include:

• Read the wristband ID
• Display the current balance
• Select a recharge amount or package
• Apply a promotional bonus
• Complete payment
• Update the balance
• Display the new balance
• Print a transaction receipt

The recharge rules and bonus packages can be configured through the software.

Automatic Wristband Dispensing

An optional wristband dispensing module can store and issue wristbands automatically.

Available functions may include:

• Single wristband dispensing
• Automatic activation and registration
• Low-inventory warning
• Empty-dispenser warning
• Failed-dispense detection
• Inventory counting
• Multiple wristband types, subject to module configuration
• Custom wristband outlet design

The dispensing mechanism must be selected according to the wristband size, shape, packaging method and material.

For unusual or adjustable wristband structures, physical samples should be tested before final production.

RFID and NFC Wristband Reading

The integrated reader can support wristband identification, balance inquiry and recharge operations.

Depending on the selected card technology, the system may support:

• RFID wristbands
• NFC wristbands
• MIFARE-compatible cards or wristbands
• Venue membership cards
• Stored-value cards
• Reusable access credentials

Compatibility must be confirmed according to the customer’s wristband chip, reader protocol and management software.

Cash Payment with Automatic Change

The kiosk can accept banknotes and coins and automatically return change according to the configured payment rules.

A typical cash payment process includes:

1. Confirm the payable amount
2. Insert accepted banknotes or coins
3. The system verifies and counts the cash
4. The remaining amount is displayed in real time
5. The transaction is completed when sufficient cash is received
6. Excess payment is returned through the change modules
7. The wristband is activated or recharged

Possible cash modules include:

• Banknote validator
• Banknote recycler
• Coin acceptor
• Coin recycler
• Coin hopper
• Banknote dispenser

The actual change method depends on the selected modules. If the machine only accepts banknotes and returns coins, the page should describe it as automatic coin change, not full cash recycling.

Card and Digital Payment Options

The kiosk can also support cashless payment methods, including:

• Credit and debit cards
• Contactless NFC payment
• QR code payment
• Mobile wallets
• Venue membership account
• Prepaid card payment
• External or embedded POS terminal

This allows the venue to provide both cash and digital payment through one terminal.

Balance Inquiry

Visitors can check their wristband balance before entering or continuing to use venue services.

The kiosk may display:

• Available balance
• Remaining play credits
• Remaining admission time
• Package validity
• Bonus credits
• Recent recharge record
• Wristband status

The displayed data depends on the venue management platform and available API.

Ticketing and Venue System Integration

The kiosk can connect with third-party systems through API, SDK or database integration.

Possible integrations include:

• Amusement park management system
• RFID cashless payment platform
• Ticketing system
• Access control system
• Membership platform
• POS system
• Game card or credit system
• Locker management system
• Food and beverage payment system
• Remote device management platform

Typical exchanged information may include:

• Wristband ID
• Product or package information
• Customer or member information
• Admission permission
• Recharge amount
• Current balance
• Payment status
• Transaction records
• Wristband activation status

The final integration scope depends on the customer’s software and interface documentation.

Package and Promotion Management

The software can support different sales and recharge options, such as:

• Single-entry wristband
• All-day admission
• Time-based play package
• Stored-value recharge
• Game-credit package
• Family package
• Promotional bonus
• Member pricing
• Holiday pricing
• Discount coupon
• Free bonus credit after reaching a recharge threshold

Package rules can be managed locally or synchronized from the venue’s central system.

Receipt and Voucher Printing

An optional thermal printer can print:

• Purchase receipts
• Recharge receipts
• Admission information
• Balance confirmations
• QR pickup vouchers
• Promotional coupons
• Refund or cancellation records
• Customer service information

A 58mm or 80mm printer can be selected according to the required paper width and paper capacity.

Remote Monitoring and Management

An optional management platform can support:

• Device online status
• Wristband inventory status
• Printer paper status
• Cashbox balance
• Coin or banknote change level
• Peripheral fault alerts
• Transaction statistics
• Recharge reports
• Error logs
• Remote restart
• Software updates
• Advertising-content updates

This allows operators to manage multiple kiosks across a large venue or several branches.

Secure Commercial Enclosure

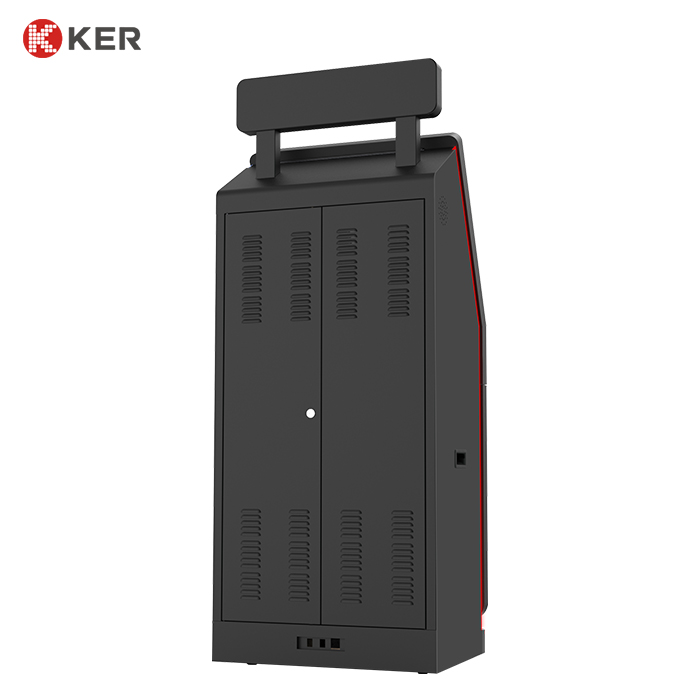

The kiosk uses a lockable metal cabinet designed for high-frequency commercial operation.

Optional security features include:

• Separate cash and service compartments
• Lockable cashbox
• Electronic or mechanical lock
• Door-open sensor
• Anti-pry structure
• Internal camera
• Alarm interface
• Secure cash module mounting
• Floor anchoring
• Protected cable routing

The enclosure appearance, color and logo can be customized to match the amusement venue’s branding.
