Description

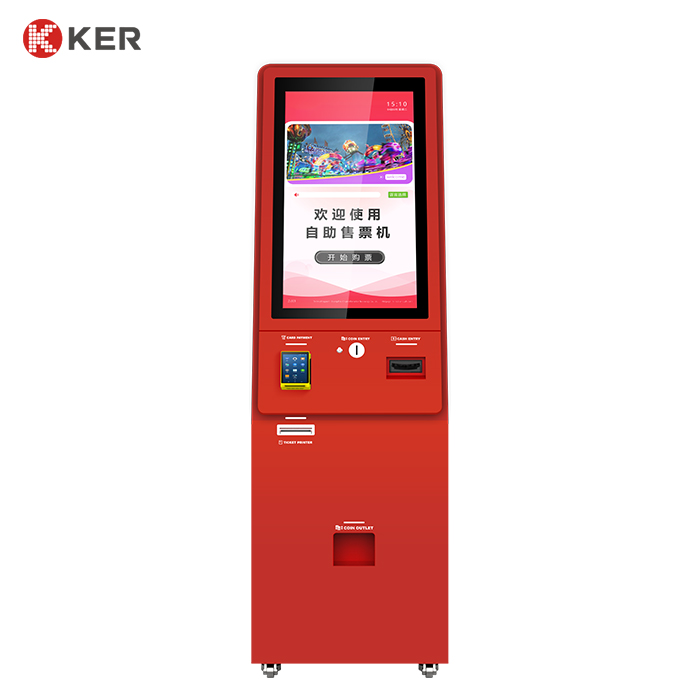

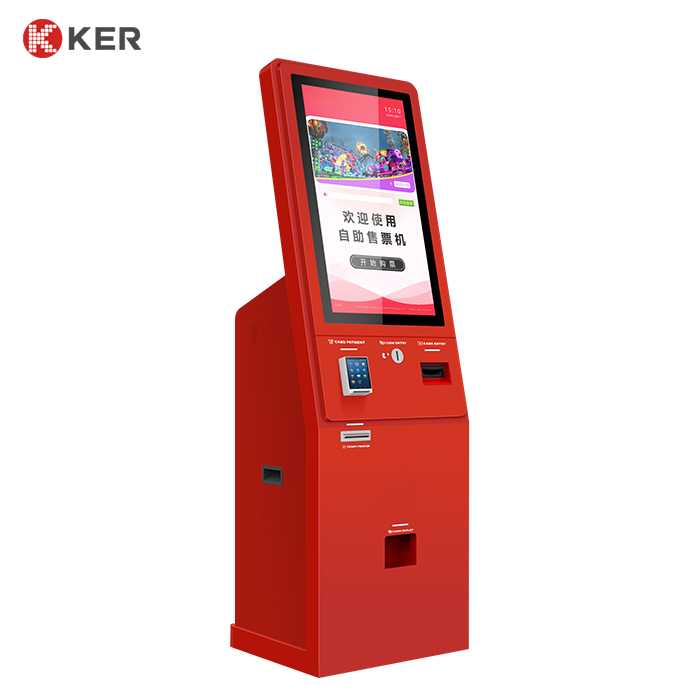

Floor-Standing Self-Service Ticket Kiosk with Cash Payment

KER Floor-Standing Self-Service Ticket Kiosk is an unattended ticketing and payment terminal developed for amusement parks, indoor playgrounds, arcades, water parks, tourist attractions and family entertainment centers.

Visitors can use the touchscreen to select admission tickets, timed sessions, play packages, game credits or other venue services. After payment is completed using banknotes, coins or optional cashless payment methods, the kiosk can print a physical ticket, payment receipt, queue number or QR code voucher.

Compared with a desktop ticket kiosk, the floor-standing model provides more internal space for larger cashboxes, coin modules, ticket printers and other peripherals. Its stable freestanding structure is suitable for entrances, ticket halls, reception areas and other high-traffic commercial environments.

The cabinet, cash modules, ticket format and software workflow can be customized according to the venue’s ticketing platform and operating requirements.

Self-Service Ticket Purchasing

The kiosk allows visitors to complete ticket purchases without waiting at a staffed counter.

A typical transaction process may include:

1. Select a language
2. Choose the required ticket or package
3. Select ticket quantity or session time
4. Confirm the order and total amount
5. Select a payment method
6. Insert banknotes or coins
7. Receive change if the configured modules support it
8. Collect the printed ticket, receipt or QR voucher
9. Scan the ticket at the entrance or present it to staff

The transaction workflow can be customized according to the venue’s software and ticket-validation process.

Flexible Ticket and Package Sales

The kiosk can be configured to sell different products, including:

• Adult and child admission tickets
• Single-entry tickets
• Family packages
• Timed-session tickets
• Full-day passes
• Ride packages
• Game-credit packages
• Membership packages
• Event tickets
• Food and service vouchers
• Promotional or holiday packages

Ticket prices, package availability and validity periods can be managed through the connected ticketing system.

Banknote and Coin Payment

The kiosk can integrate banknote and coin modules for unattended cash payment.

Available functions may include:

• Banknote denomination recognition
• Counterfeit banknote detection
• Coin denomination recognition
• Accepted-denomination configuration
• Real-time inserted-amount display
• Cashbox-full warning
• Low-change warning
• Jam and fault detection
• Transaction and cash records
• Automatic change, subject to configuration

The supported currency and denominations depend on the selected banknote and coin devices.

Optional Automatic Change

Depending on the project requirements, the kiosk can be configured in two operating modes.

Exact-payment mode

The customer inserts the exact payable amount, and the machine does not return change.

Automatic-change mode

Coin hoppers, coin recyclers, banknote recyclers or dispensing modules can be installed to return excess payment automatically.

Possible configurations include:

• Coin-only change
• Small-banknote change
• Combined banknote and coin change
• One or multiple change denominations
• Configurable payout priority
• Low-cash and empty-module alerts

The final change method must be confirmed according to the target currency, ticket prices and expected transaction volume.

Ticket and QR Code Printing

The integrated thermal printer can produce:

• Admission tickets
• QR code tickets
• Payment receipts
• Queue numbers
• Session confirmations
• Pickup vouchers
• Game-credit vouchers
• Promotional coupons
• Customer service information

A 58mm or 80mm printer can be selected according to ticket width, paper-roll capacity and printing requirements.

Printed QR codes can be verified by access gates, handheld scanners or ticket-validation terminals.

QR and Barcode Scanning

An optional scanner can support:

• Online ticket redemption
• Mobile booking verification
• Coupon redemption
• Membership identification
• Reservation-code scanning
• Ticket reprinting
• Pickup-code verification
• Promotional campaign participation

This allows the kiosk to support both on-site ticket sales and online order collection.

Card and Digital Payment

The terminal can also integrate cashless payment methods, including:

• Credit and debit cards
• Contactless NFC payment
• QR code payment
• Mobile wallets
• Prepaid cards
• Membership cards
• External or embedded POS terminals

A combination of cash and cashless payment options can be provided through the same kiosk.

Ticketing and Access-Control Integration

The kiosk can connect with third-party systems through API, SDK, database interfaces or other supported communication methods.

Possible integrations include:

• Ticketing management system
• Access-control and gate system
• Amusement park management platform
• Online booking platform
• Membership system
• POS system
• Game-credit platform
• Queue management system
• Payment gateway
• Remote kiosk management platform

Typical exchanged information may include:

• Ticket type and quantity
• Product or package price
• Order status
• Payment result
• Ticket number or QR code
• Validity period
• Admission status
• Transaction records
• Printer and cash-module status

The integration scope depends on the customer’s software workflow and available interface documentation.

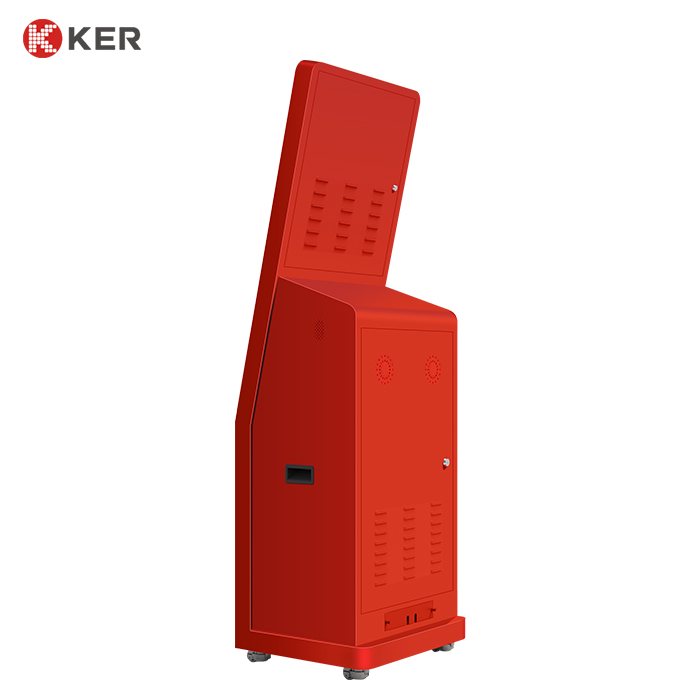

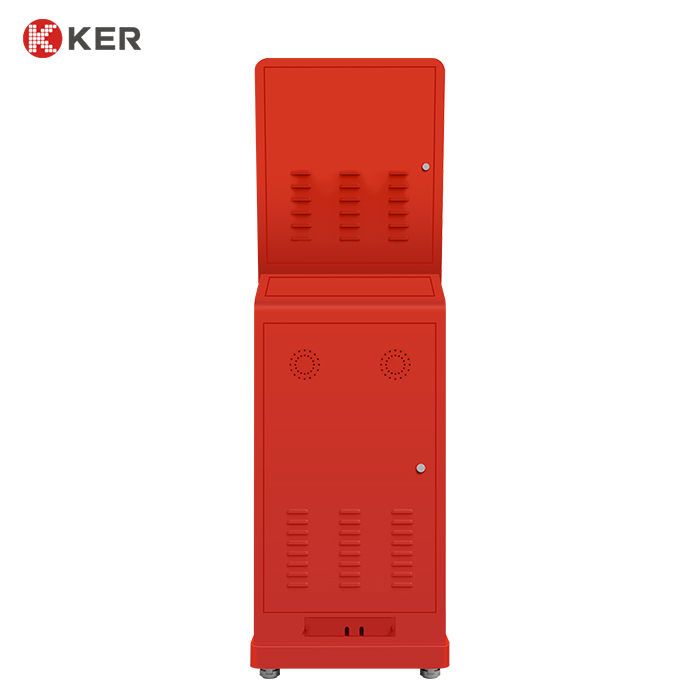

High-Capacity Floor-Standing Cabinet

The floor-standing structure provides more internal installation space than a compact desktop model.

Advantages include:

• Larger banknote cashbox capacity
• Space for multiple coin hoppers
• Larger ticket-paper roll support
• More peripheral expansion options
• Stable freestanding installation
• Lockable maintenance compartments
• Easier internal cable management
• Suitable for high-traffic venues
• Custom branding and appearance

The machine can also be anchored to the floor for added security.

Remote Monitoring and Management

An optional remote platform can support:

• Device online status
• Ticket-printer status
• Paper-low warning
• Banknote and coin transaction records
• Cashbox-full warning
• Change-module inventory
• Ticket-sales statistics
• Peripheral fault alerts
• Error and event logs
• Remote restart
• Software updates
• Advertising-content management

This helps operators manage equipment across large venues or multiple locations.

Secure Cash Management

The kiosk can be designed with separate lockable areas for cash and maintenance.

Optional security features include:

• Lockable banknote cashbox
• Separate coin storage
• Mechanical or electronic locks
• Door-open sensors
• Reinforced metal cabinet
• Anti-pry structure
• Internal camera
• Alarm interface
• Floor anchoring
• Secure internal cable routing

The security configuration can be selected according to the installation environment.

Specifications are for reference only. Screen size, accepted currency, banknote and coin denominations, change configuration, printer, scanner, payment terminal and software integration can be customized according to project requirements.
