Description

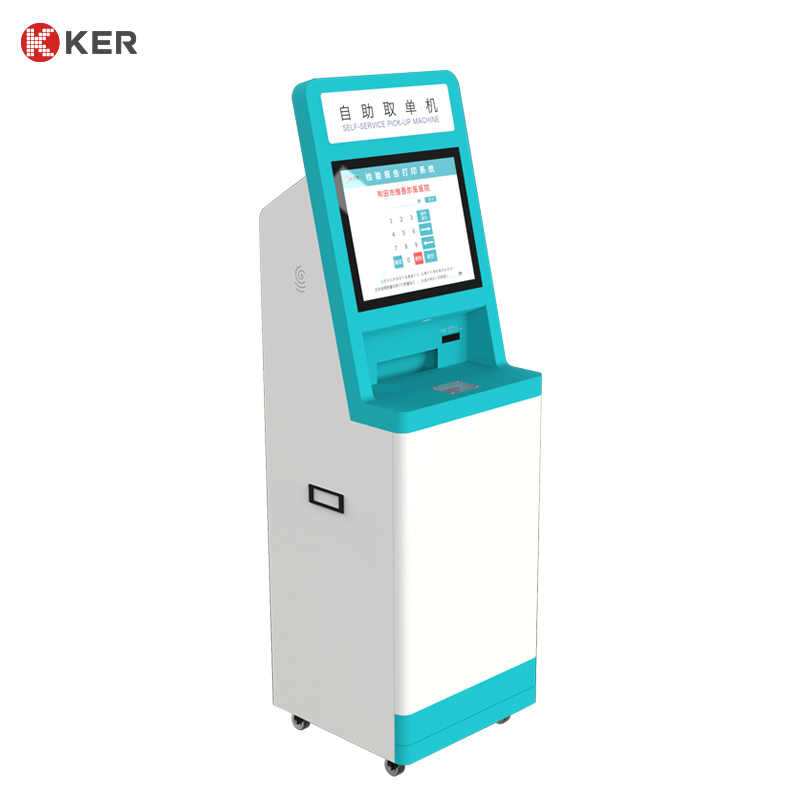

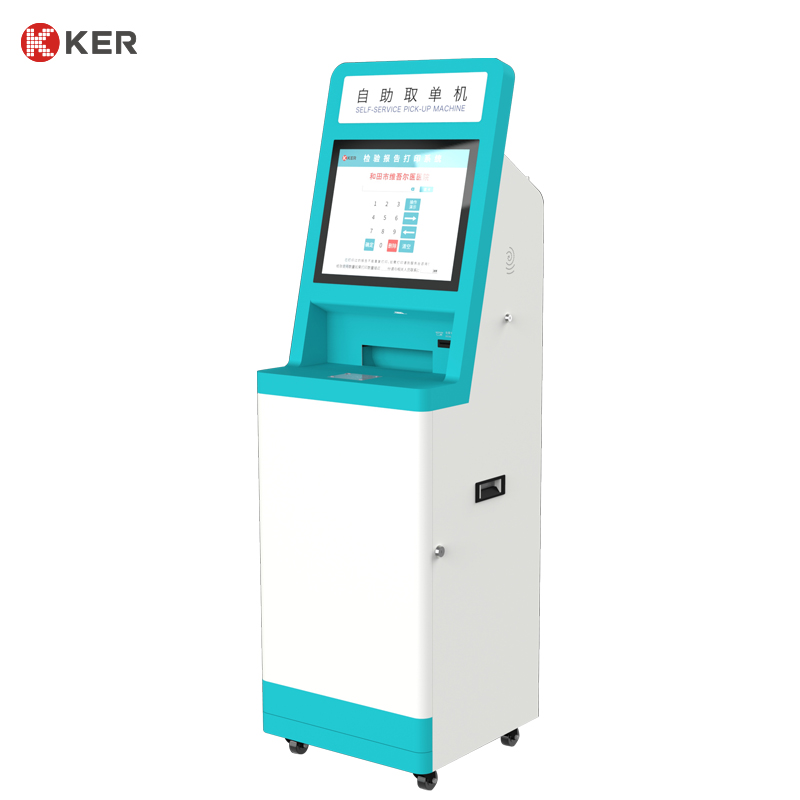

Hospital Medical Report Self-Service Printing Kiosk

KER Hospital Medical Report Self-Service Printing Kiosk is an unattended document printing terminal designed for hospitals, clinics, medical examination centers, laboratories and diagnostic imaging departments.

Patients can identify themselves using a hospital card, national ID card, QR code, barcode, appointment number or other supported credentials. Once verification is completed, the kiosk can retrieve available medical reports from the connected hospital system and print them automatically.

Depending on the software and system integration, the kiosk can support laboratory reports, examination reports, imaging reports, health-check summaries, medical certificates, payment receipts and other patient documents.

The terminal helps hospitals reduce pressure on staffed report-collection counters, shorten patient waiting times and provide report printing services during extended operating hours.

The enclosure, screen size, printer capacity, identification devices, software workflow and hospital system connection can be customized according to project requirements.

Patient Identification and Verification

The kiosk can support different patient identification methods.

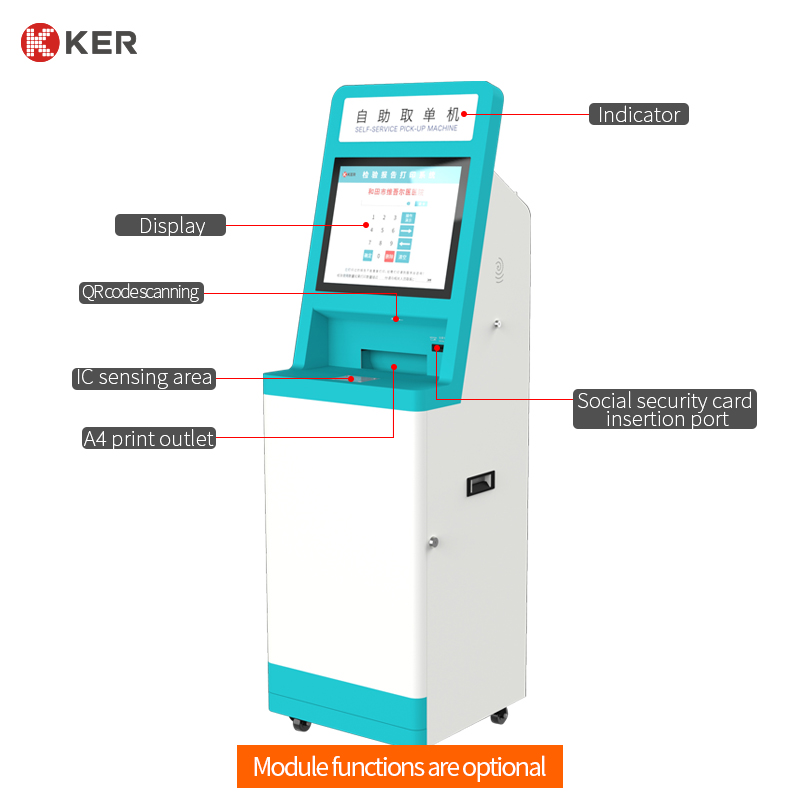

Optional identification devices include:

• Hospital or medical card reader
• National ID card reader
• Social security card reader
• IC card reader
• RFID or NFC reader
• QR code scanner
• Barcode scanner
• Appointment number input
• Patient number input
• Mobile phone number verification
• Passport reader
• Camera, subject to project requirements

The available identification method depends on the hospital system and local patient-registration process.

Medical Report Inquiry

After patient verification, the kiosk can retrieve available reports from the connected medical information system.

The touchscreen may display:

• Patient name
• Patient number
• Examination department
• Report type
• Examination date
• Report status
• Available reports
• Printed or unprinted status
• Number of pages
• Printing instructions

Only authorized reports associated with the verified patient should be displayed.

A4 Medical Report Printing

The terminal can integrate a monochrome or color A4 printer according to the required document type.

Possible printed documents include:

• Laboratory test reports
• Blood test results
• Imaging reports
• Ultrasound reports
• CT or MRI diagnostic reports
• Physical examination summaries
• Pathology reports
• Medical examination certificates
• Visit summaries
• Payment receipts
• Appointment confirmations
• Patient instructions

Printer capacity can be selected according to the expected daily printing volume.

Laboratory Report Printing

When connected with the Laboratory Information System, the kiosk may support printing:

• Blood test reports
• Urine test reports
• Biochemistry results
• Microbiology results
• Immunology reports
• Pathology information
• Other laboratory documents

The actual report format and availability are controlled by the hospital’s LIS and approval workflow.

Imaging and Examination Reports

When connected with RIS, PACS or related systems, the kiosk may retrieve and print:

• Radiology reports
• CT diagnostic reports
• MRI reports
• Ultrasound reports
• Endoscopy reports
• ECG reports
• Other examination results

This kiosk is primarily designed for printing text-based diagnostic reports. Printing diagnostic film or medical images requires a compatible medical film printer and a different hardware configuration.

HIS, LIS, RIS and PACS Integration

The kiosk can connect with hospital systems through API, SDK, database interfaces, middleware or other supported communication methods.

Possible integrations include:

• Hospital Information System
• Laboratory Information System
• Radiology Information System
• Picture Archiving and Communication System
• Electronic Medical Record system
• Patient registration system
• Appointment platform
• Billing and payment system
• Queue management system
• Medical examination management system

Typical exchanged information may include:

• Patient identity
• Patient number
• Visit number
• Examination order
• Report type
• Report status
• Report file
• Printing authorization
• Printed status
• Transaction and operation logs

The exact integration scope depends on the hospital workflow and available technical documentation.

Report Release and Printing Authorization

The software can be configured to print only reports that have been approved or officially released.

Possible controls include:

• Report completed status
• Doctor approval status
• Printing authorization
• Payment completion verification
• One-time printing
• Limited reprint quantity
• Reprint password
• Staff authorization
• Print history tracking
• Document watermark

These controls help prevent unauthorized or premature report printing.

Touchscreen User Interface

The 19-inch touchscreen guides patients through each step.

A typical workflow may include:

1. Select a language
2. Scan a medical card, ID card or QR code
3. Verify patient information
4. Retrieve available reports
5. Select one or multiple reports
6. Preview report information
7. Confirm printing
8. Wait for document processing
9. Collect the printed report
10. Return automatically to the home page

The interface can use large buttons, clear instructions and high-contrast text to improve accessibility.

Multilingual Operation

The kiosk can support multiple languages for hospitals serving international or multilingual populations.

The interface may include:

• Language selection
• Patient identification instructions
• Report availability information
• Printing progress
• Paper collection guidance
• Error messages
• Staff-assistance information
• Privacy reminders

The final languages depend on the software configuration.

Optional Payment Function

Some hospitals may charge for report reprinting, document copies or specific services.

Optional payment methods include:

• Credit and debit cards
• Contactless NFC payment
• QR code payment
• Mobile wallets
• Medical account deduction
• Hospital prepaid card
• Optional banknote or coin payment

Payment integration is optional and depends on the hospital’s billing policy and payment platform.

Receipt and Small-Format Printing

In addition to the main A4 printer, the kiosk may integrate a thermal printer for:

• Payment receipts
• Queue numbers
• Print confirmation
• Document collection vouchers
• Transaction references
• Patient instructions

A 58mm or 80mm thermal printer can be selected according to project requirements.

Printer and Paper Management

An optional management platform can monitor printer and consumable status.

Possible functions include:

• Printer online status
• Paper-low warning
• Paper-out warning
• Toner or ink warning
• Paper-jam alerts
• Printer door-open warning
• Print-job status
• Failed-print records
• Reprint management
• Daily printing quantity
• Remaining paper estimation

This helps hospital staff replenish consumables before service is interrupted.

Remote Device Management

The kiosk may support remote monitoring and maintenance functions, including:

• Device online status
• Printer status
• Scanner and card-reader status
• Network status
• Peripheral fault alerts
• Software version
• Error and operation logs
• Remote restart
• Software updates
• Interface-content updates
• Usage and print statistics

Remote functions require network connectivity and corresponding management software.

Patient Privacy and Data Protection

Medical information should be displayed and processed according to the hospital’s privacy and security requirements.

Possible privacy controls include:

• Patient identity verification
• Automatic session timeout
• Automatic clearing of on-screen information
• Temporary file deletion after printing
• Encrypted communication
• Access permissions
• Operation logs
• Screen privacy protection
• Restricted reprinting
• Data-retention configuration

The hospital or system provider is responsible for confirming applicable local medical-data and privacy requirements.

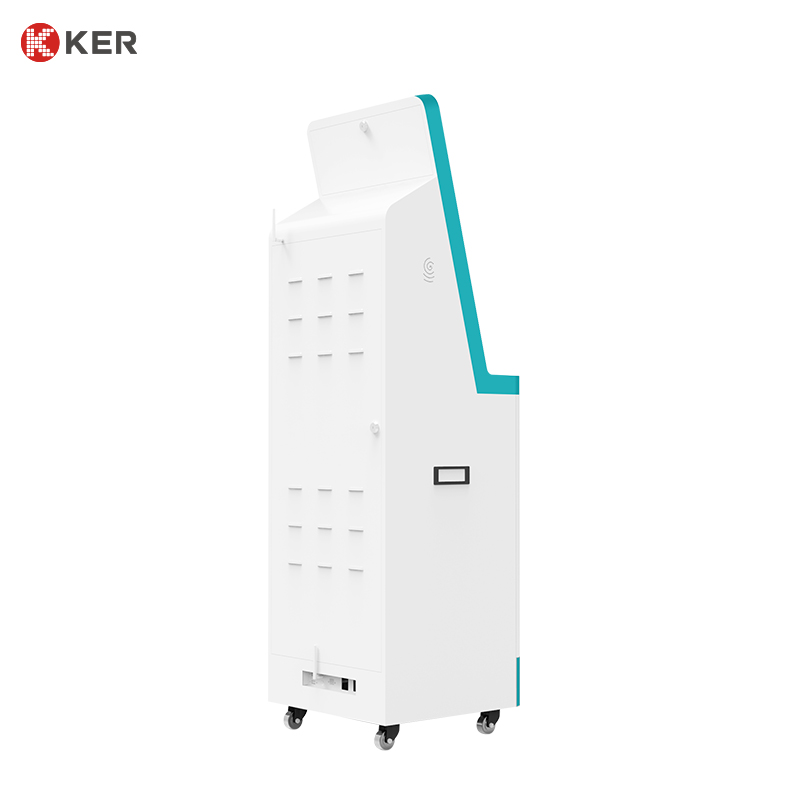

Secure and Serviceable Cabinet

The floor-standing metal cabinet can provide secure installation for the printer, computer and identification modules.

Available design features include:

• Lockable maintenance doors
• Separate printer compartment
• Large-capacity paper storage
• Hidden internal wiring
• Ventilation and cooling
• Easy toner and paper replacement
• Mechanical or electronic locks
• Door-open sensor
• Floor anchoring
• Custom module openings
• Customized colors and branding

The internal structure should be designed according to the selected A4 printer model and expected paper capacity.

Item	Specification
Product Type	Hospital Medical Report Self-Service Printing Kiosk
Main Functions	Patient identification, report inquiry and document printing
Applications	Hospitals, clinics, laboratories and medical examination centers
Installation	Floor standing
Display Size	19 inches
Touchscreen	Projected capacitive touchscreen
Resolution	Full HD or customized
Processor	Intel or ARM platform optional
Memory	4GB / 8GB / customized
Storage	64GB / 128GB / 256GB optional
Operating System	Windows / Android / Linux optional
Main Printer	A4 monochrome or color printer optional
Paper Capacity	Standard or high-capacity paper tray optional
Thermal Printer	58mm or 80mm optional
Identification	Medical card, ID card, QR, barcode, NFC or passport optional
Scanner	QR code and barcode scanner optional
Card Reader	IC, RFID, NFC, medical or social security card reader optional
Payment	Card, NFC, QR and optional cash payment
Network	Ethernet, Wi-Fi and 4G optional
System Integration	HIS, LIS, RIS, PACS, EMR and appointment platforms
Report Formats	PDF, image or customized print formats
Remote Management	Device, printer, consumable and fault monitoring optional
Enclosure	Powder-coated metal cabinet
Security	Lockable maintenance door and floor anchoring optional
Language	Multilingual interface supported
Branding	Logo, color and UI customization
Customization	OEM and ODM supported

Specifications are for reference only. The printer model, paper capacity, identification devices, payment modules, report format and HIS, LIS, RIS or PACS integration can be customized according to project requirements.
