Product Introduction

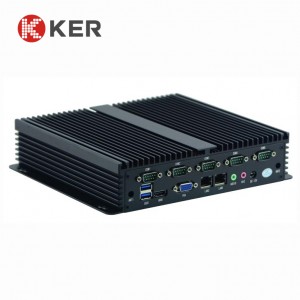

D465Z uses Intel® Haswell-U I5-4300U / 1.9GHz dual-core processor, Intel® Haswell-U SOC platform chipset, built-in Intel® HD core graphics card, and provides VGA and HDMI interface display output. Achieve independent dual display when VGA and HDMI are used at the same time. Supports SATA and SSD storage, which brings great convenience to the release of dynamic advertising information.
The D465Z body adopts an all-aluminum alloy casing, fanless cooling structure, ultra-low power consumption and compact structure. It is a network device and control box used in digital advertising applications.
Specification
Chassis | Color | Black |
Dimension | 235mm*200mm*52mm(L*W*H) | |
Structure | Full aluminum fanless radiating structure | |
Material | Full aluminum alloy | |
Intallation | Desktop or embedded installation | |
Motherboard | Model | ITX-H45_I526L |
Processor | Integrated Intel® Haswell-U I5-4300U/1.9GHz dual core processor | |
Chipset | Based on Intel® Haswell-U/Broadwell-U SOC platform | |
Graphics | HD Graphics | Integrated Intel® HD Graphics 4400, support DirectX 11.2/12, OpenGL4.3 support synchronous / asynchronous display. |
Resolution | 1*VGA, max support 1920×1200@60Hz1*HDMI, max support 3200×2000@60Hz | |
Storage | Memory | 1* SODIMM support 1600/1333MHz DDR3L/1.35V memory, max up to 8GB |
HDD | Support 1*2.5 inch HDD expansion | |
CF | N/A | |
SSD | Support 1*MSATA SSD expansion | |
Audio | Sound Card | Integrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out |
Network | Ethernet | 2*WGI211AT Gigabit Ethernet port, support Wake on Lan, PXE |
WiFi | 1*Mini-PCIE slot, support WiFi, 3G module | |
I/O port | USB | 2* USB2.0, 2*USB3.0 |
Power Switch | 1* Power Switch | |
LAN | 1* LAN (RTL8111E/F, Gigabit Ethernet) | |
Display | 1* VGA, 1*HDMI display output | |
Serial Port | 5* RS232 serial port, COM3 support RS485/422 | |
Power In | 1*12V DC IN Jack | |
Antenna | 2*WIFI/3G SMA antenna (optional) | |
Audio | 2*MIC, 2*Line-out | |
Power Adaptor | Input | AC 110V ~ 220V |
Output | DC 12V 5A | |
Reliability | Operating Temp. | 0℃~45℃ |
Storage Temp. | -20℃~70℃ | |
Relative Humidity | 5%-95%, no condensing | |
Vibration | 0.5g rms/5-500HZ/random/operating | |
Operating System | Support Win7/Win8/Win10/Linux OS |
