Rapid Delivery for 32 Inch All In One Touch Screen - Industrial All-in-one PC – Chujie Detail:

INTRODUCTION

All-in-one PCs, also known as all-in-one desktops, integrate the computer case and system components into the monitor so that the entire PC is contained all in one unit. All-in-one (AIO) desktop PCs offer the advantage of a smaller form factor than desktop PCs, but they often come with several drawbacks as well, including higher cost, weaker performance and limited upgrade options.

The all-in-one computer design debuted with the Apple iMac in 1998. While the early all-in-one PC computers were expensive and bulky, all-in-one PCs have become much slimmer, lighter and cheaper with the advent of LCD monitors and smaller, less expensive desktop system components.


FEATURES

1. Fast and leading capacitive touch technology
2. Strong appearance, shock absorption, explosion-proof and anti-interference
3. LED industrial LCD screen, 1024*768P resolution, clear and natural images, vivid characters, rich and accurate, delicate and moving
4. Internal integrated design, more predictable to optimize the layout of heating elements, to ensure a more efficient thermal stability export.
5. Strong compatibility to match industry needs
6. Rich interface, diversification of integrated computer and stronger practicability
7. Green energy-saving, more cost-saving, more heart-saving, support 7*24 hours of work, no need for personnel management, more worry-saving
8. Flexible installation
Support wall-mounted/desktop/VESA/embedded and other installation methods, convenient for flexible use in various industries.
Wall mounting (default wall mounting bracket)
Desktop Installation (Desktop Bracket Optional)

SPECIFICATION

Specification
Brand Name KER
Case Color Black(color can be customized)
Material High-quality pure aluminum
CPU Intel celeron J1900 quad core 2.0GHz (Core i5 4210U is optional)
Chipset Adopt Intel express chipset
RAM 1*DDR3L 1333/1600 MHz ram, (Max:8G)
Storage Support 1*MSATA, 1*2.5” SSD/HDD
Audio Integrated Realtek ALC662 6 sound channel
Display Interface 1*HD, 1*VGA, 1*LVDS
Display Integrated Intel HD Graphic card, support VGA, HD, LVDS display input
I/O 1*USB3.0, 3*USB2.0 (2*USB3.0, 2*USB2.0 is optional)
  1*HD
  1*VGA
  2*RS232 COM (COM2 support RS232/422/485 is optional)
  1* RJ45 Lan
  1*MIC
  1*Audio
  1*12V DC IN
  1*3Pin Power Phoenix Terminal
  1*Power Switch
Network Card 1*Intel RTL8111E 1000M lan, support wake on lan
Expansion 1*mini-PCIE(support WiFi/BT/3G/4G)
Touch Screen LCD Capacitive screen, Multi point touch
Power Supply DC 12V-IN power supply and AC power adapter
Operating System Windows 7/8/10, Linux
BIOS 64MB SMT Flash ROM
Working Temperature -10°C – 60°C
Storage Temp -20°C – 70°C
Working Humidity 0% – 90% relative humidity, Non-condensing
Size 373*298*59 mm (W*D*H)
Application Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal,
Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance
Parking Pay Station, Channel System, Medical electronic etc



1 (5)工控一体机主图31 (1) 1 (2) 1 (3) 1 (4)

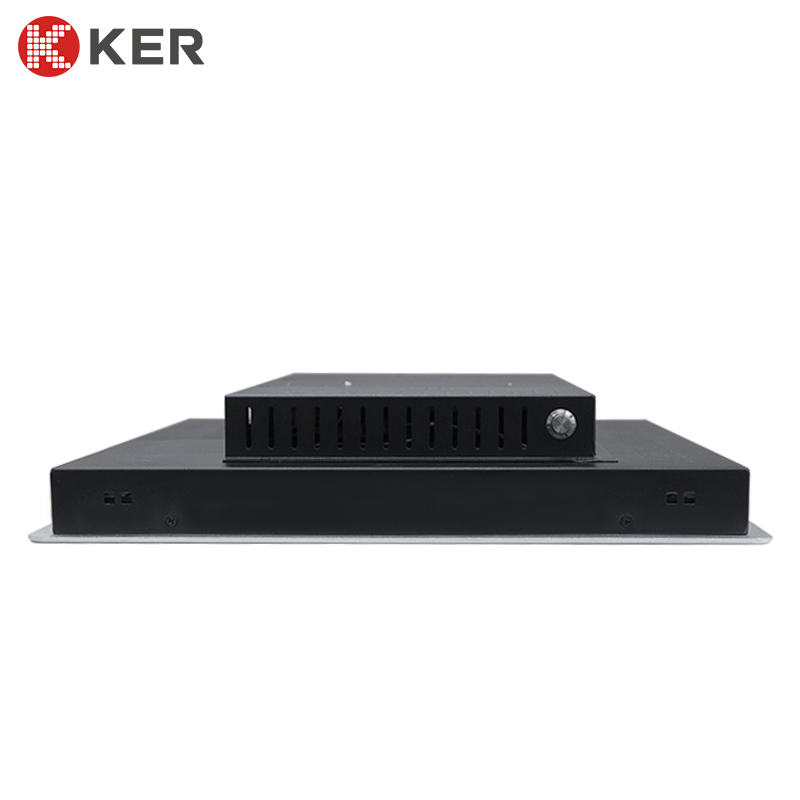

Product detail pictures:

Rapid Delivery for 32 Inch All In One Touch Screen - Industrial All-in-one PC – Chujie detail pictures

Rapid Delivery for 32 Inch All In One Touch Screen - Industrial All-in-one PC – Chujie detail pictures

Rapid Delivery for 32 Inch All In One Touch Screen - Industrial All-in-one PC – Chujie detail pictures
